Product Introduction

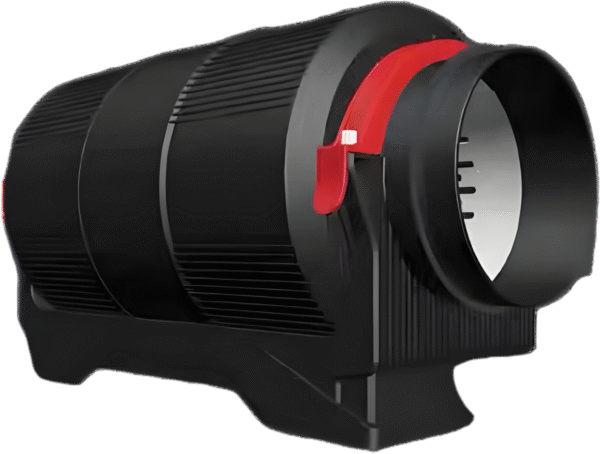

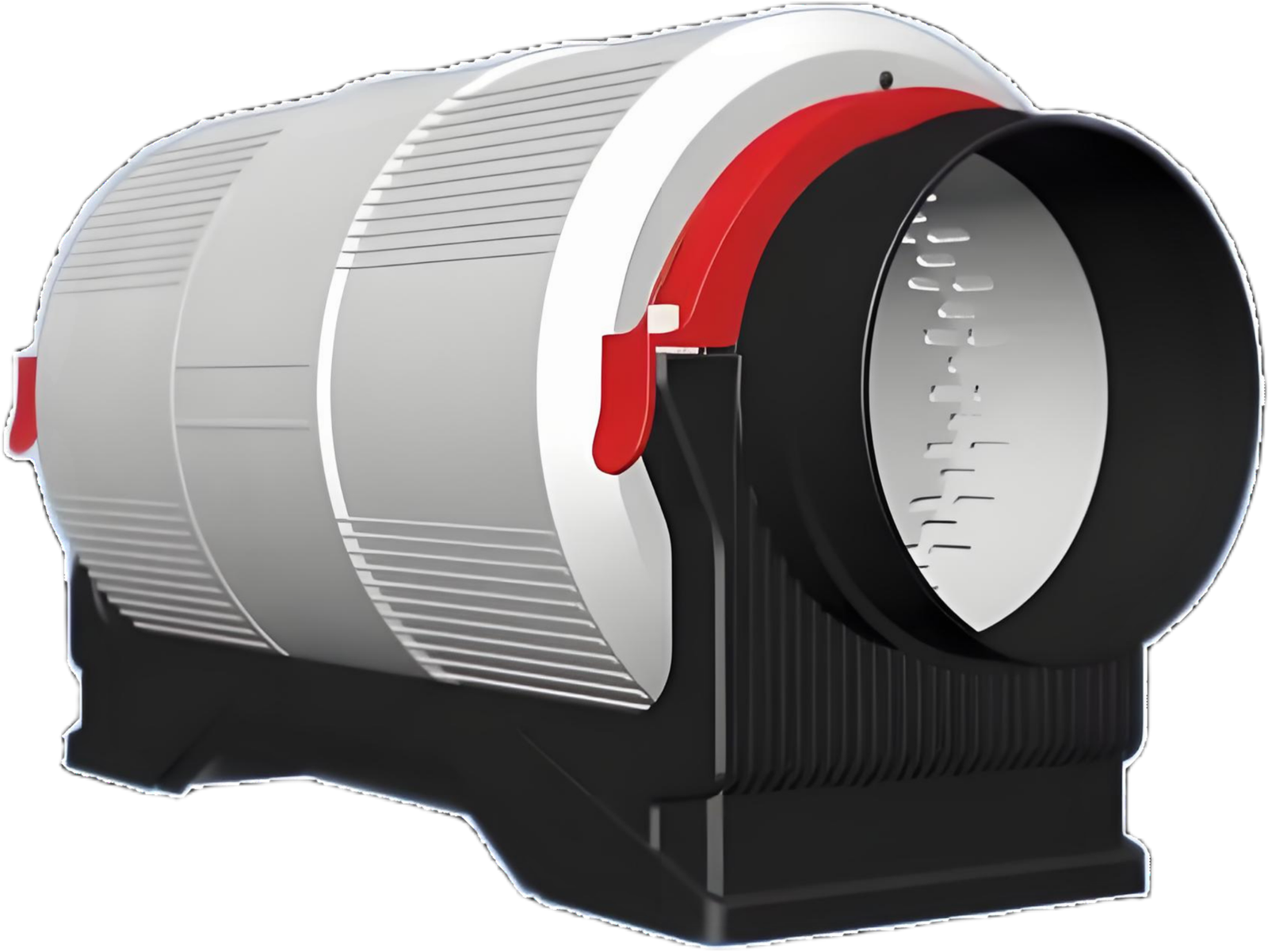

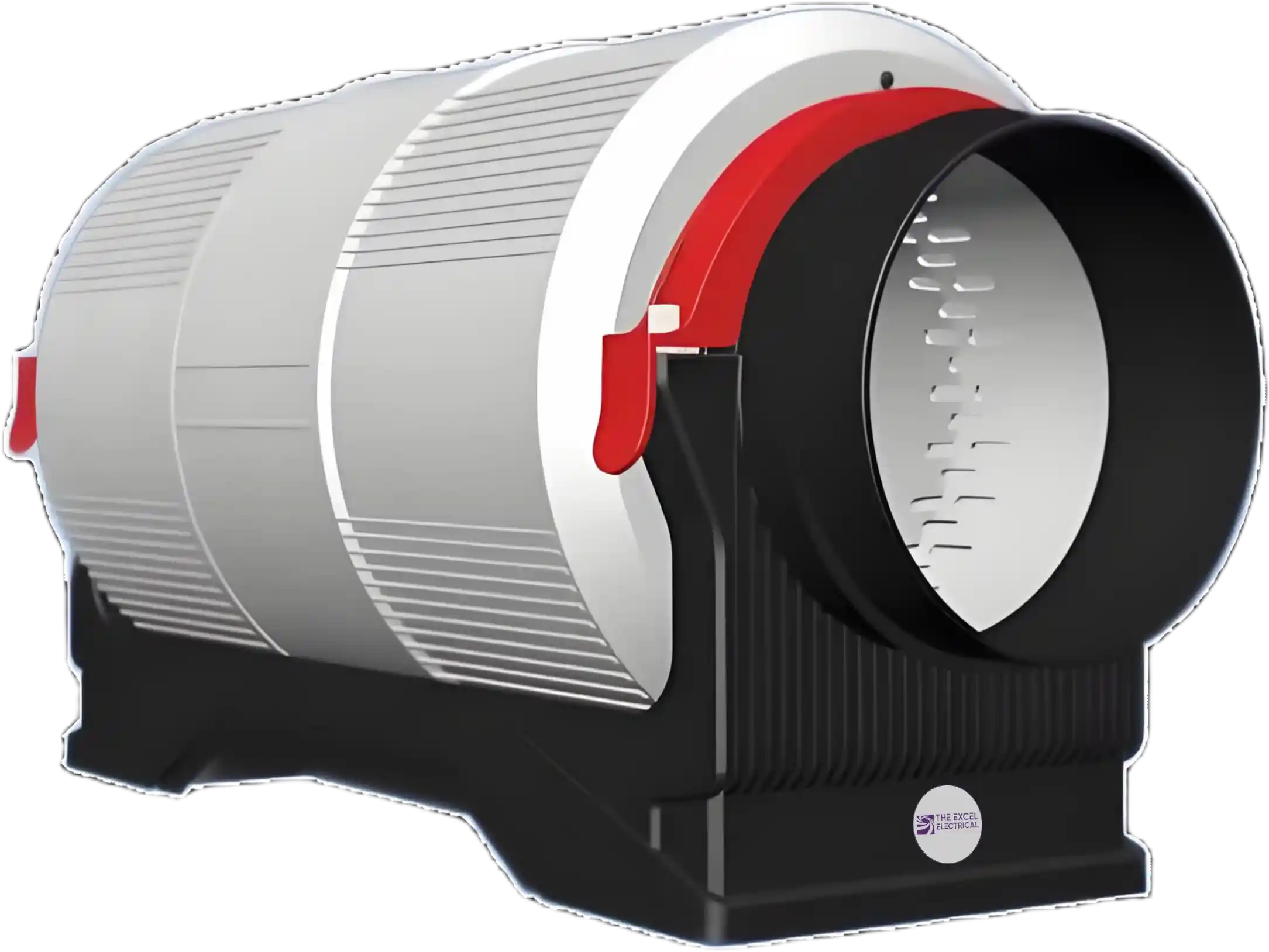

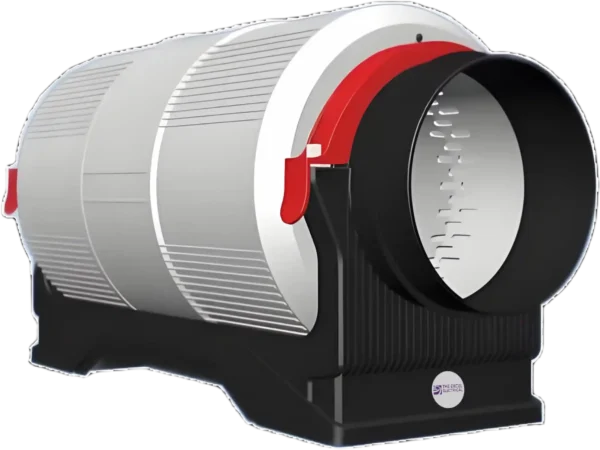

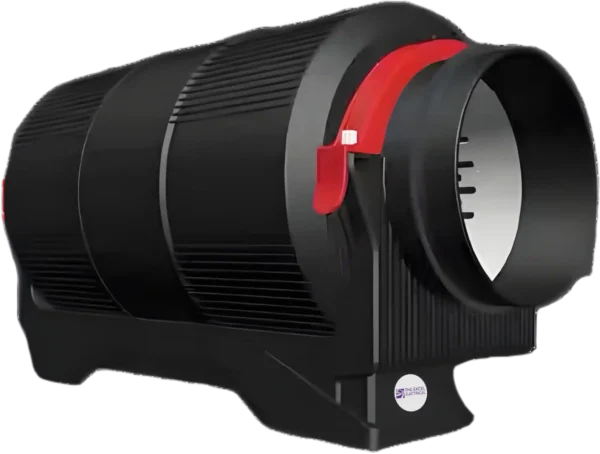

The ZB Pipeline Booster Fan is a compact duct ventilation fan developed using advanced technology. With its optimized blade and flow-channel design, it provides an effective boosting effect for duct systems. It features a small volume, beautiful appearance, large air volume, low noise, and stable operation, making it a perfect choice as supporting equipment for HVAC and air conditioning systems.
It is widely applied in homes, shopping malls, restaurants, hotels, entertainment venues, and air conditioning pipelines, ensuring reliable airflow and quiet performance.
Application Industries & Uses:
- HVAC and ducted ventilation systems
- Homes and apartments
- Shopping malls and restaurants
- Hotels and entertainment venues
- Air conditioning and supporting pipelines
Features & Construction
- Impeller:
- Optimized blade and flow-channel design for effective boosting
- Provides large airflow with stable performance
- Balanced for low noise and vibration-free operation
- Casing & Housing:
- Compact circular duct housing
- Small volume and smooth exterior design
- Corrosion-resistant and easy to integrate with ducts
- Performance:
- Boosts airflow effectively in pipelines
- Stable operation with long service life
- Low noise for residential and commercial use
- Motor:
- External rotor motor
- Space-saving, efficient, and reliable
- Suitable for continuous operation in duct systems
Types & Parameters
| Model | Hertz (Hz) | Power (W-P) | Traffic (m³/h) | Static Pressure (Pa) |
|---|---|---|---|---|
| ZB-100 | 50 | 40 | 290 | 125 |
| ZB-100 | 50 | 40 | 330 | 150 |
| ZB-100 (Two-Speed) | 50 | 30 | 280 | 125 |
| ZB-125 | 50 | 40 | 290 | 125 |
| ZB-125 | 50 | 40 | 330 | 150 |
| ZB-125 (Two-Speed) | 50 | 30 | 280 | 125 |
| ZB-150 | 50 | 70 | 620 | 280 |
| ZB-150 | 50 | 70 | 600 | 300 |
| ZB-150 (Two-Speed) | 50 | 60 | 480 | 250 |
| ZB-200 | 50 | 145 | 1120 | 350 |
| ZB-200 | 50 | 145 | 1200 | 360 |
| ZB-200 (Two-Speed) | 50 | 130 | 900 | 280 |
Technical Specifications
| Specification | Details |
|---|---|
| Material | High-strength steel with protective coating |
| Traffic / Application | Homes, malls, restaurants, hotels, entertainment venues, HVAC |
| Power | External rotor motor, direct drive |
| Air-flow | Large airflow with boosting effect (model dependent) |
| Noise Level | Low noise / silent operation |
| Size / Dimensions | Compact circular duct design |
| Motor | External rotor, pure copper winding |
| Warranty | 12 months (extendable) |
| Color | Industrial Grey / Customizable |
| Voltage | 220V / 380V, 50Hz |
| RPM | Not specified in catalogue |
Key Benefits
- Compact circular design saves space in duct systems
- Provides large airflow with low noise
- Stable and reliable performance
- Efficient external rotor motor ensures durability
- Easy to install and maintain
- Suitable for residential, commercial, and HVAC applications
