Product Introduction

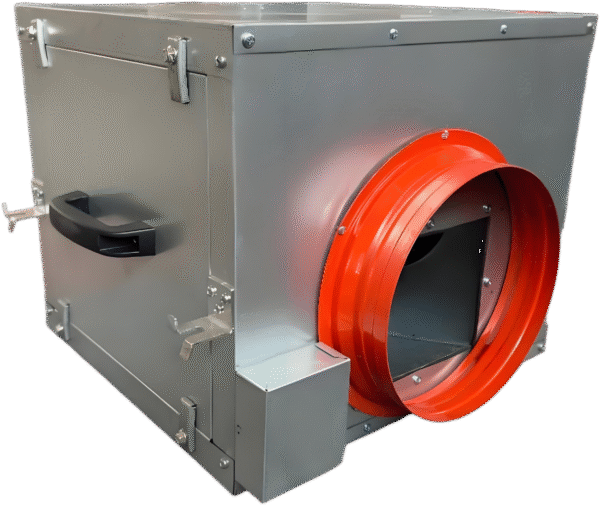

The SY-AIO Dual Purpose Pipeline Exhaust Centrifugal Fan is a versatile ventilation solution designed for kitchen smoke exhaust and pipeline air circulation. With its compact square cabinet design, rear access door, and built-in sound-absorbing insulation, it ensures low noise, strong suction, and energy efficiency.
This fan is ideal for use in restaurants, hotels, food processing facilities, laboratories, basements, and industrial ventilation systems where both pipeline air movement and kitchen fume removal are required.
Application Industries & Uses:
- Restaurant and hotel kitchens
- Oil fume purification systems
- Industrial air pipelines and ducts
- Laboratories and basements
- Commercial ventilation and exhaust setups
Features & Construction
- Impeller:
- Multi-wing impeller with forward-curved blades
- Balanced for smooth, efficient airflow
- Casing & Housing:
- Square cabinet structure with rear door access
- Built-in cotton insulation for noise and vibration reduction
- Performance:
- Dual purpose: suitable for both pipeline exhaust and kitchen smoke removal
- Delivers large airflow with low noise
- Compact and neat design for easy integration
- Motor:
- Direct-driven pure copper motor
- Oil-proof and durable for long service life
Parameters
| Model | Speed (r/min) | Power (kW-P) | Traffic (m³/h) | Total Pressure (Pa) |
|---|---|---|---|---|
| 250-4 | 1450 | 0.8KW-4P | 2200 | 530 |
| 300-4 | 1450 | 1.1KW-4P | 3000 | 580 |
Technical Specifications
| Specification | Details |
|---|---|
| Material | High-quality steel (optional stainless steel for kitchens) |
| Traffic / Application | Kitchens, restaurants, pipelines, labs, basements, factories |
| Power | Direct-driven motor |
| Air-flow | High suction with large air volume |
| Noise Level | Low noise with insulation lining |
| Size / Dimensions | Square cabinet with rear access door |
| Motor | Pure copper, dynamically balanced |
| Warranty | 12 months (extendable) |
| Color | Industrial Grey / Stainless Steel (customizable) |
| Voltage | 220V / 380V, 50Hz |
| RPM | 1450 – 2900 RPM (depending on size) |
Key Benefits
- Dual-purpose design for kitchens and air pipeline systems
- Low noise due to cotton-insulated cabinet structure
- Strong suction with large air volume for efficient ventilation
- Oil-proof and durable, suitable for heavy-duty kitchen use
- Rear door access for easy cleaning and maintenance
- Compact cabinet design saves installation space
