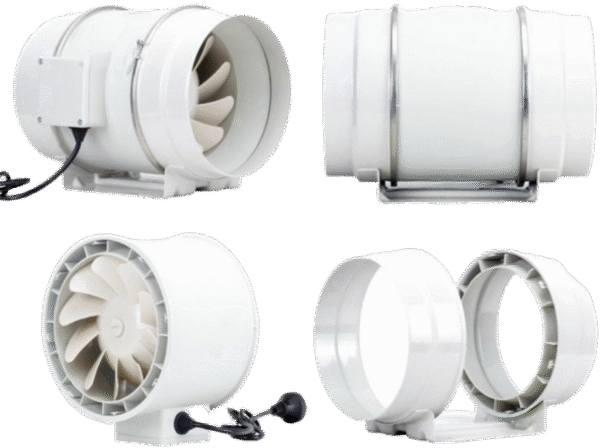

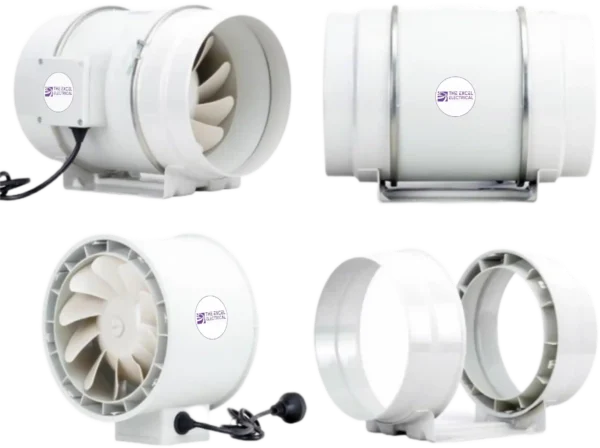

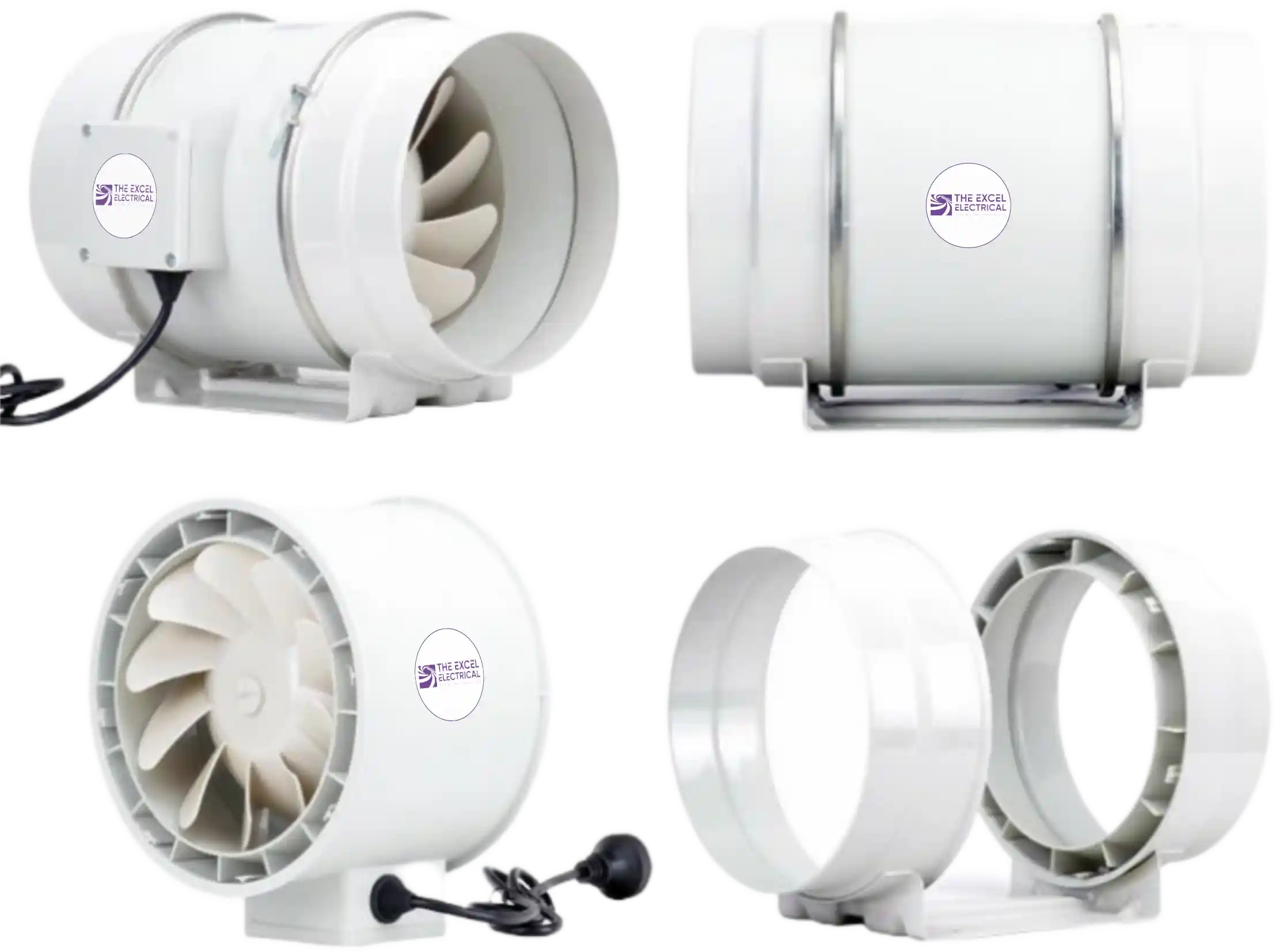

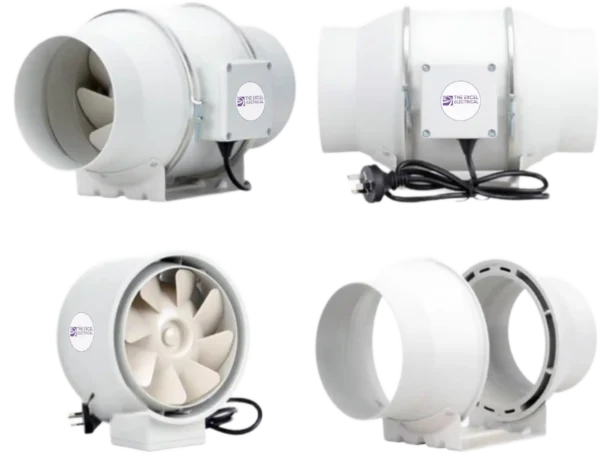

Product Introduction
The HF Diagonal Flow Duct Fan is a hybrid ventilation solution that combines the advantages of both axial flow and centrifugal fans. It delivers high airflow at medium pressure with low noise levels, making it ideal for applications where efficient duct ventilation is required.
This fan is widely used in HVAC systems, tunnels, basements, factories, warehouses, and commercial buildings to ensure continuous air circulation, exhaust, and cooling.
Application Industries & Uses:
- HVAC and ducted ventilation systems
- Factories and production workshops
- Basements and underground structures
- Tunnels and long pipeline ventilation
- Commercial and public buildings
Features & Construction
- Impeller:
- Diagonal blade design (between axial and centrifugal)
- Ensures higher pressure than axial fans and larger airflow than centrifugal fans
- Balanced for low vibration and noise reduction
- Casing & Housing:
- Cylindrical steel housing with corrosion-resistant finish
- Compact and easy to install within ducts
- Motor:
- Direct-driven pure copper motor
- Energy-efficient and reliable for continuous operation
- Performance:
- Suitable for medium pressure, long-distance ventilation
- Delivers stable airflow with minimal noise

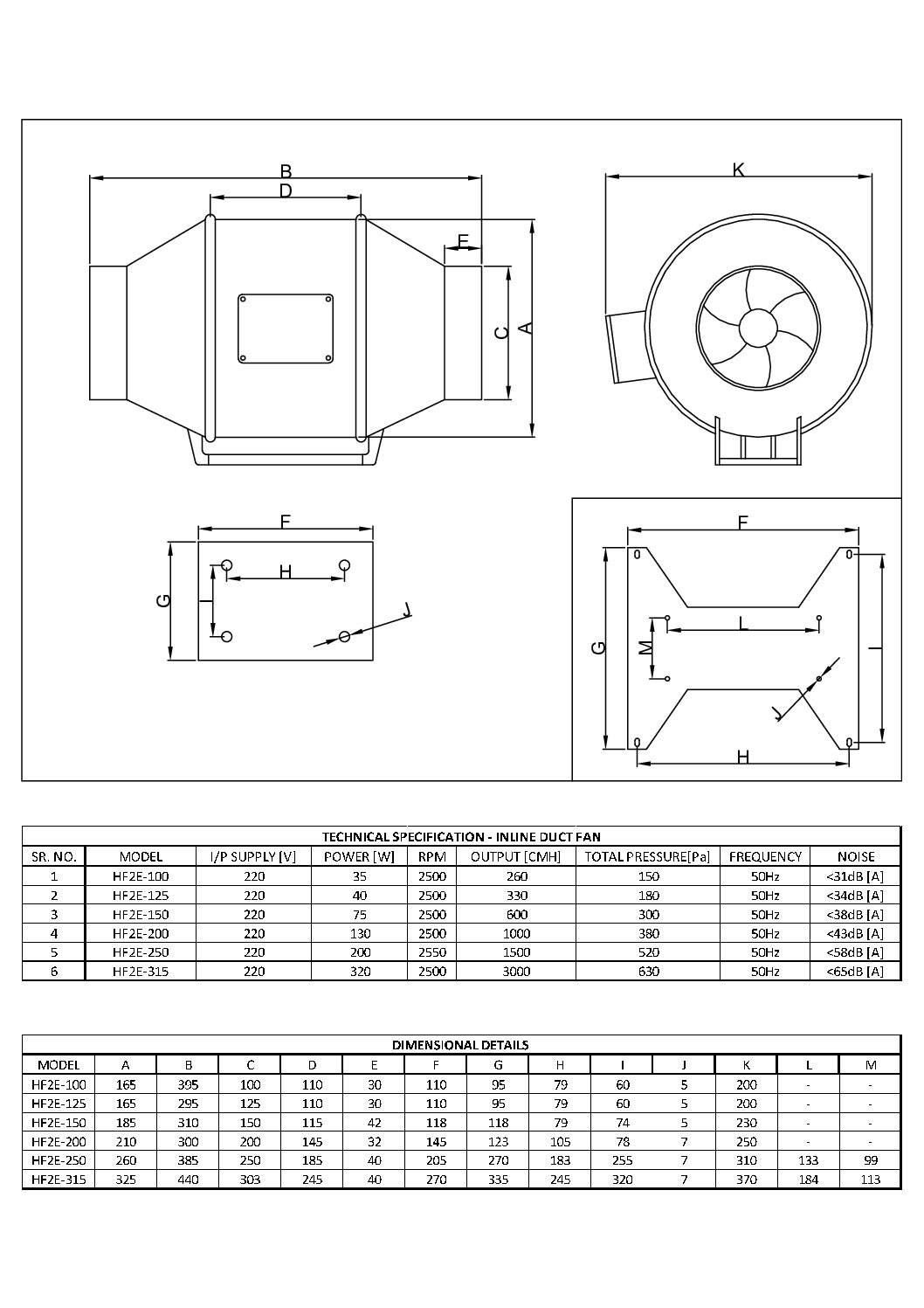

Type & Parameters
| Model | Hertz (Hz) | Power (W-P) | Traffic (m³/h) | Static Pressure (Pa) |
|---|---|---|---|---|
| HF-75 | 50 | 28W-2P | 220 | 150 |
| HF-100-1 | 50 | 28W-2P | 220 | 150 |
| HF-100-2 | 50 | 45W-2P | 310 | 180 |
| HF-125 | 50 | 45W-2P | 310 | 180 |
| HF-150 | 50 | 70W-2P | 540 | 300 |
| HF-160 | 50 | 70W-2P | 540 | 300 |
| HF-200 | 50 | 136W-2P | 900 | 380 |
| HF-250 | 50 | 180W-2P | 1405 | 488 |
| HF-315 | 50 | 275W-2P | 2900 | 630 |
| HF-350 | 50 | 480W-2P | 5000 | 720 |
Technical Specifications
| Specification | Details |
|---|---|
| Material | High-strength steel with protective anti-corrosion coating |
| Traffic / Application | HVAC ducts, tunnels, basements, factories, warehouses |
| Power | Direct-driven pure copper motor |
| Air-flow | Medium pressure, large airflow (model dependent) |
| Noise Level | Low noise, vibration-free |
| Motor | External rotor or direct drive motor |
| Warranty | 12 months (extendable) |
| Color | Industrial Grey / Customizable |
| Voltage | 220V / 380V, 50Hz |
| RPM | 960 – 2900 (depending on machine size) |
Key Benefits
- Combines axial fan airflow capacity with centrifugal fan pressure performance
- Large airflow with medium pressure, perfect for ducts and pipelines
- Low noise and vibration-free operation
- Compact, cylindrical structure for space-saving installations
- Durable construction with protective coating
- Widely applicable in HVAC, tunnels, factories, and basements
