Product Introduction

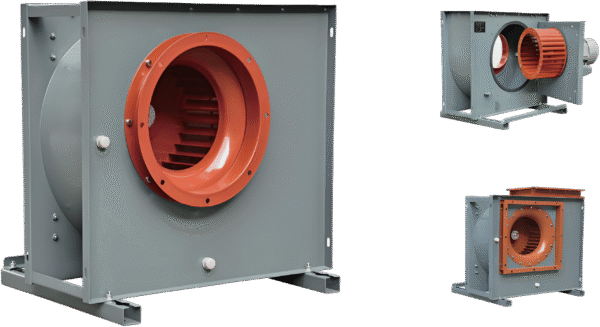

The CY-48 Centrifugal Fan is a specialized oil fume purification fan designed to provide efficient smoke extraction and ventilation in commercial kitchens. Built with advanced foreign technology and years of industrial expertise, this fan ensures high suction, stable operation, and energy efficiency.
It is widely used in restaurants, hotels, canteens, and industrial kitchens, where effective lampblack (oil fume) control is essential for maintaining clean air and safe working environments.
Application Industries & Uses:
- Hotel and restaurant kitchens
- Industrial canteens and food processing units
- Oil fume purification equipment
- Commercial smoke exhaust systems
Features & Construction
- Impeller:
- Multi-wing impeller optimized for oil fume exhaust
- Balanced for smooth airflow and vibration-free operation
- Casing & Housing:
- Compact, durable cabinet-type construction
- Resistant to oil and designed for long service life
- Performance:
- Delivers large air volume and high suction power
- Low noise and energy-saving operation
- Easy installation and convenient maintenance
- Durability:
- Oil-proof design for long-lasting performance
- Suitable for heavy-duty, continuous kitchen operations
Parameters
| Model | Speed (r/min) | Power (kW-P) | Traffic (m³/h) | Total Pressure (Pa) | Voltage (V) |
|---|---|---|---|---|---|
| 3.15A | 1450 | 2.2-4 | 2452-4855 | 978-781 | 380 |
| 3.55A | 1450 | 3-4 | 3110-8951 | 1154-962 | 380 |
| 4A | 1450 | 3-6 | 6679-8102 | 702-691 | 380 |
Technical Specifications
| Specification | Details |
|---|---|
| Material | High-quality steel (optional stainless steel upgrade) |
| Traffic / Application | Oil fume purification, restaurants, hotels, canteens, food processing units |
| Power | Direct-driven motor |
| Air-flow | High suction, large air volume |
| Noise Level | Low noise, stable performance |
| Size / Dimensions | Compact structure for kitchen integration |
| Motor | Pure copper, dynamically balanced |
| Warranty | 12 months (extendable) |
| Color | Industrial Grey / Stainless Steel (customizable) |
| Voltage | 220V / 380V, 50Hz |
| RPM | 1450 – 2900 RPM (depending on size) |
Key Benefits
- Specialized for efficient lampblack (oil fume) extraction
- High suction power with large airflow capacity
- Oil-proof and durable design for commercial kitchens
- Low noise and vibration-free operation
- Compact, easy-to-install structure
- Long service life with minimal maintenance needs
