Product Introduction

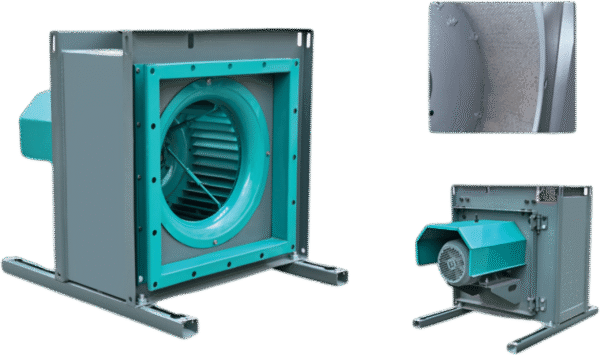

The CY-16 Specialized Centrifuge for Oil Fume Purification is a high-performance centrifugal fan designed specifically for kitchen smoke and oil fume extraction. With its square structure, rear door access, and built-in cotton configuration, it offers strong suction, stable operation, and energy-saving performance.
Engineered for long service life, it is widely applied in restaurants, hotel kitchens, food processing facilities, and industrial kitchens that require clean and safe air circulation.
Application Industries & Uses:
- Hotel and restaurant kitchens
- Food processing units
- Industrial kitchen ventilation
- Oil fume purification equipment
Features & Construction
- Impeller:
- Multi-wing impeller designed for oil fume conditions
- Balanced for smooth, stable airflow
- Casing & Housing:
- Square structure with rear door design
- Built-in cotton insulation for noise reduction
- Performance:
- High suction power with large airflow capacity
- Energy-saving design with stable and reliable operation
- Durability:
- Oil-proof and easy to maintain
- Compact and neat structure, suitable for commercial kitchens
Parameters
| Model | Speed (r/min) | Power (kW-P) | Traffic (m³/h) | Total Pressure (Pa) | Voltage (V) |
|---|---|---|---|---|---|
| 400 | 960 | 1.5-6 | 5753-6837 | 800-600 | 380 |
| 400-I | 960 | 2.2-6 | 6212-8267 | 900-600 | 380 |
| 400-I | 960 | 3-6 | 7150-11237 | 1000-700 | 380 |
| 450 | 960 | 4-6 | 3889-8351 | 675-197 | 380 |
| 500 | 960 | 5.5-6 | 6755-14130 | 901-569 | 380 |
| 560 | 960 | 7.5-6 | 8443-16202 | 985-494 | 380 |
Technical Specifications
| Specification | Details |
|---|---|
| Material | High-quality steel (optional stainless steel for oily environments) |
| Traffic / Application | Oil fume purification, kitchens, restaurants, food processing |
| Power | Direct-driven motor |
| Air-flow | Large air volume, high suction |
| Noise Level | Low noise with cotton insulation |
| Size / Dimensions | Square cabinet with compact design |
| Motor | Pure copper, dynamically balanced |
| Warranty | 12 months (extendable) |
| Color | Industrial Grey / Stainless Steel (customizable) |
| Voltage | 220V / 380V, 50Hz |
| RPM | 1450 – 2900 RPM (depending on model size) |
Key Benefits
- Specialized for oil fume purification in kitchens
- Strong suction with large airflow performance
- Low noise and vibration with insulated design
- Compact cabinet structure with easy maintenance access
- Oil-proof construction for long-lasting use
- Suitable for restaurants, hotels, and industrial kitchens
