Product Introduction

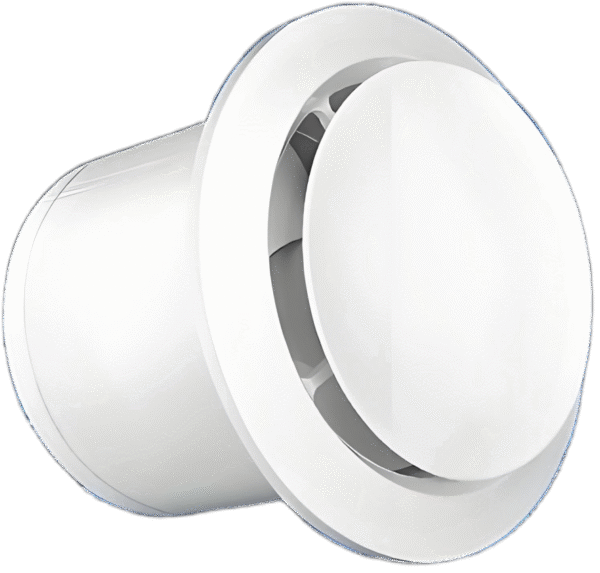

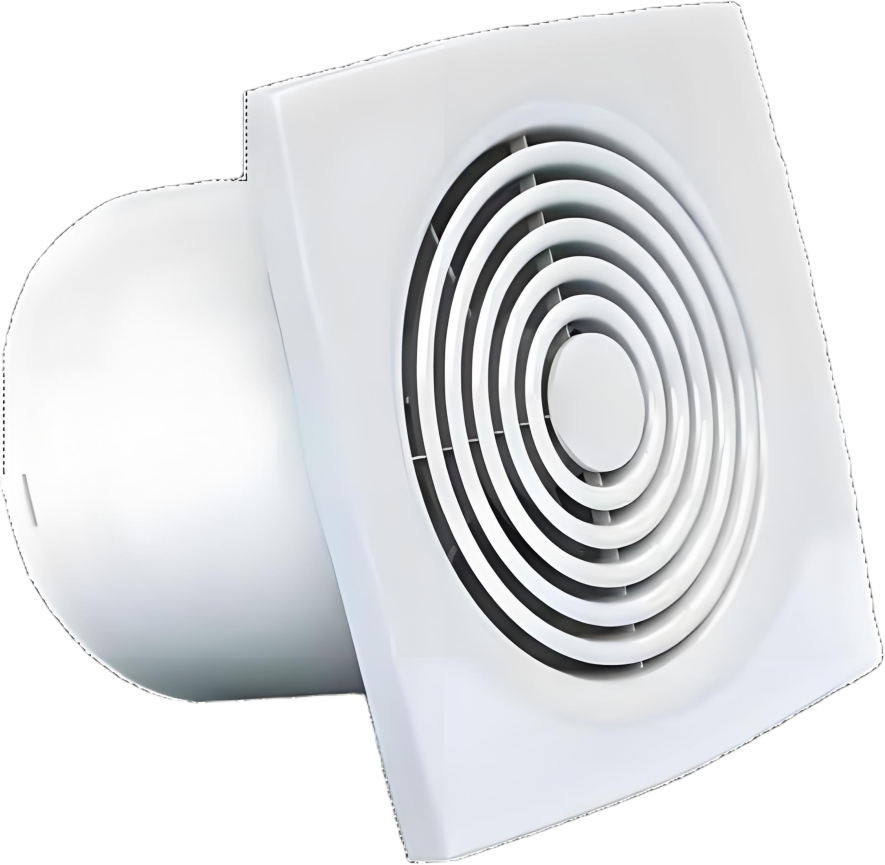

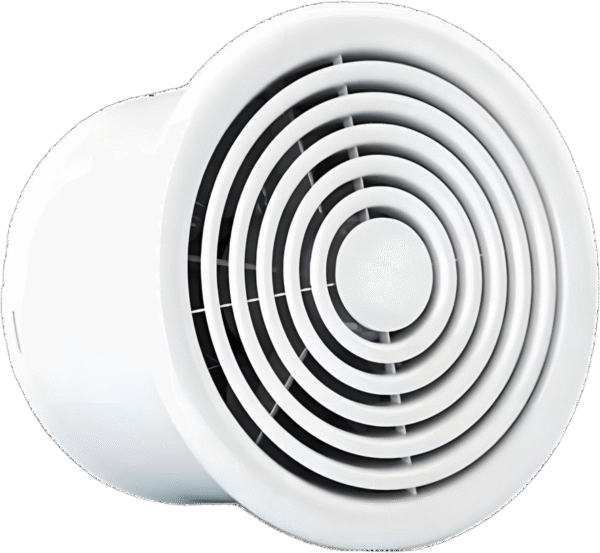

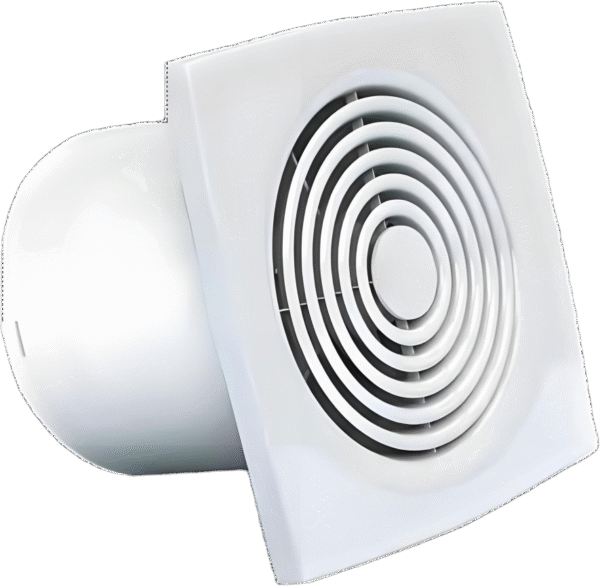

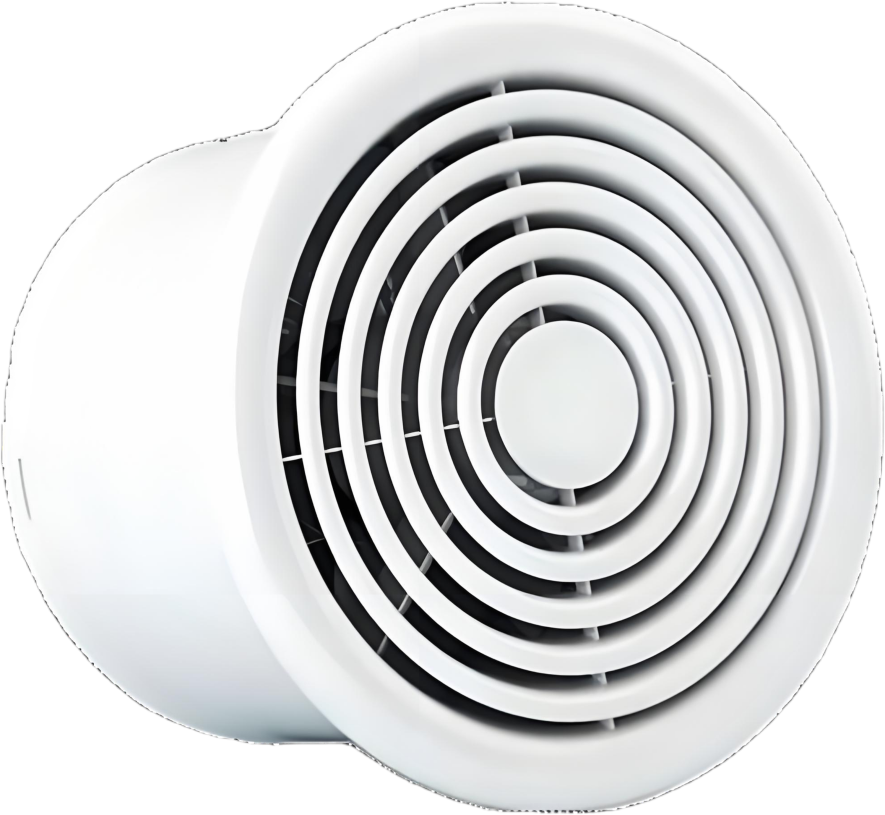

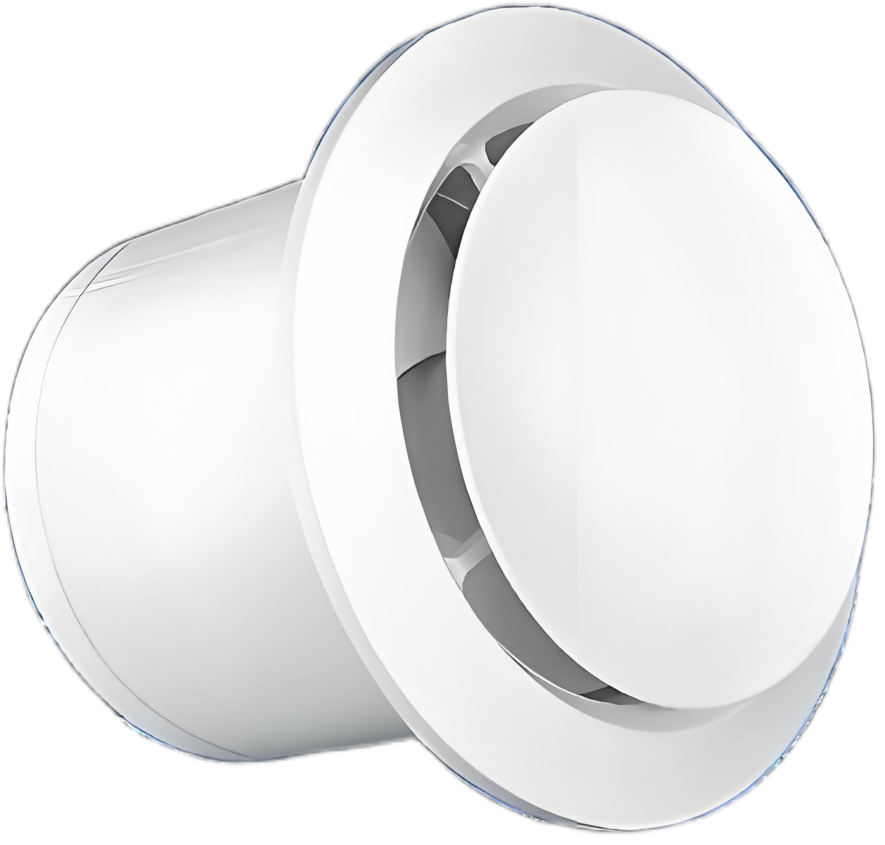

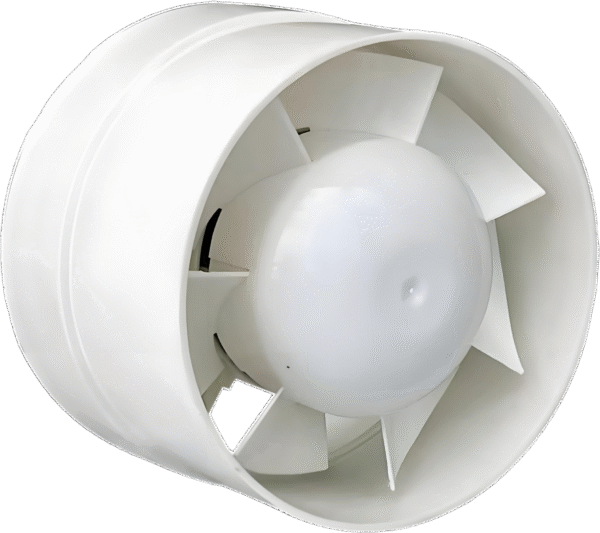

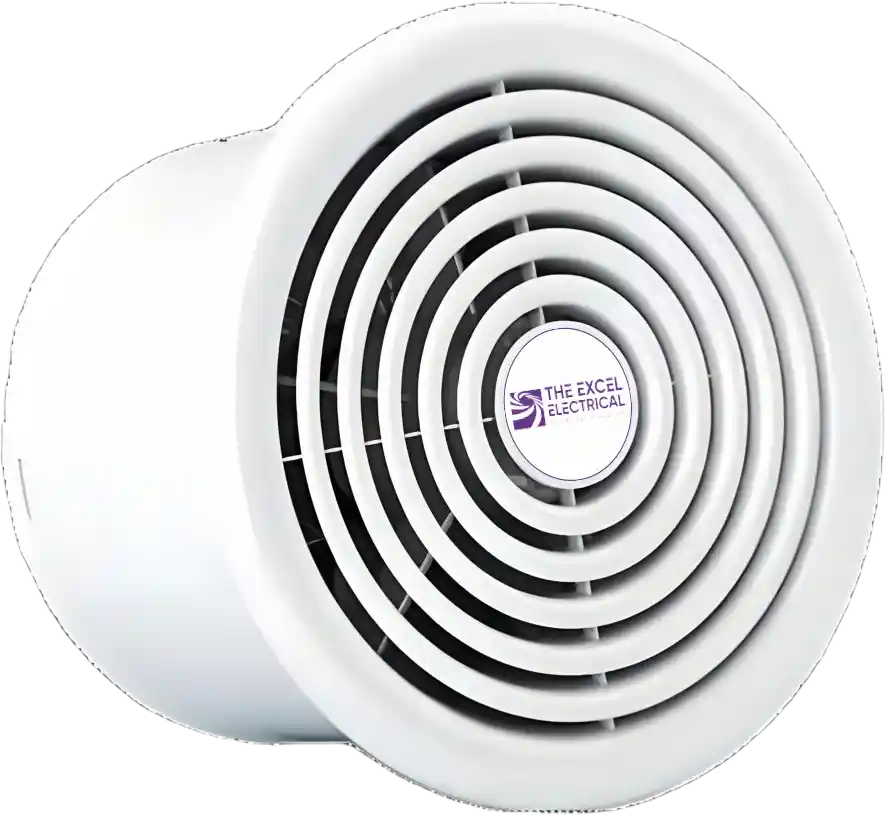

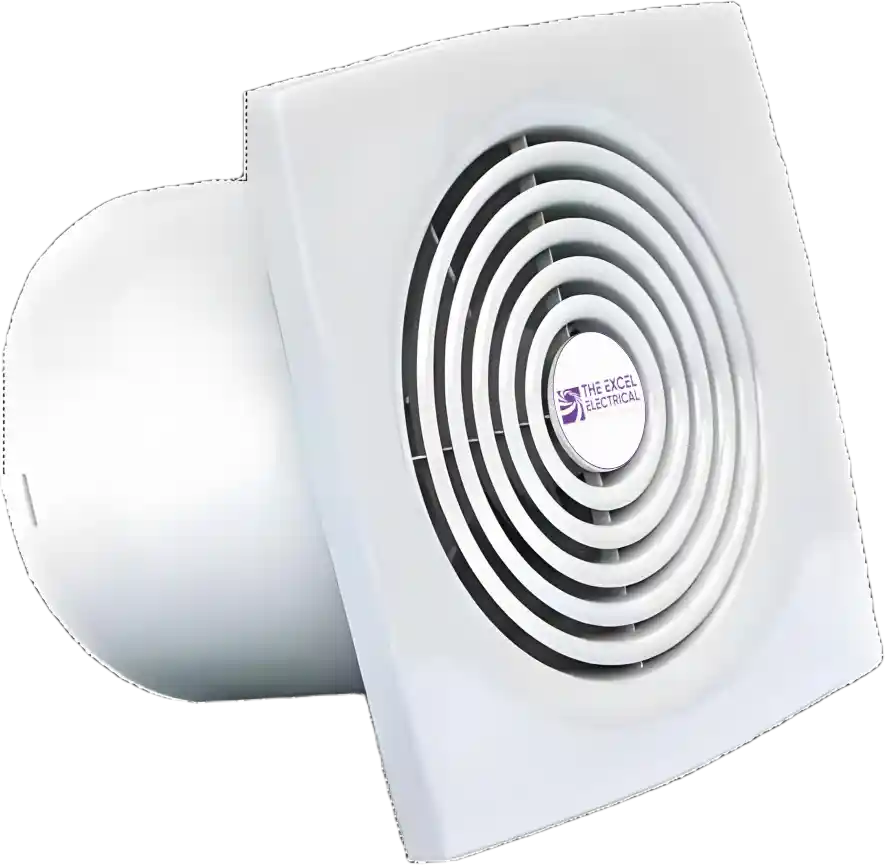

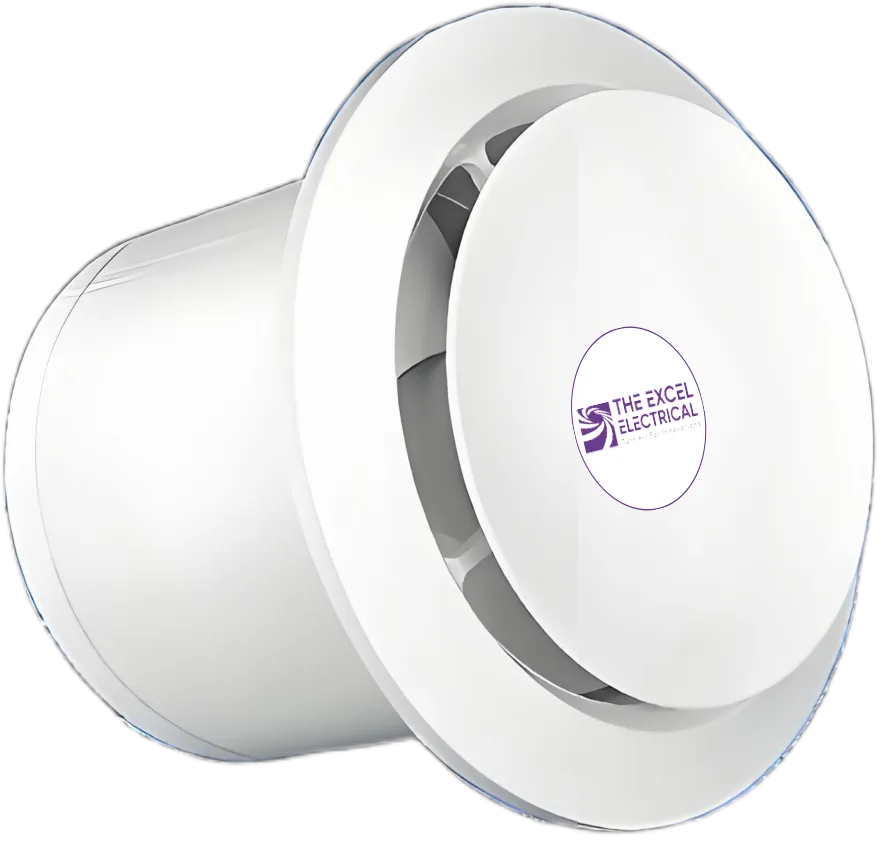

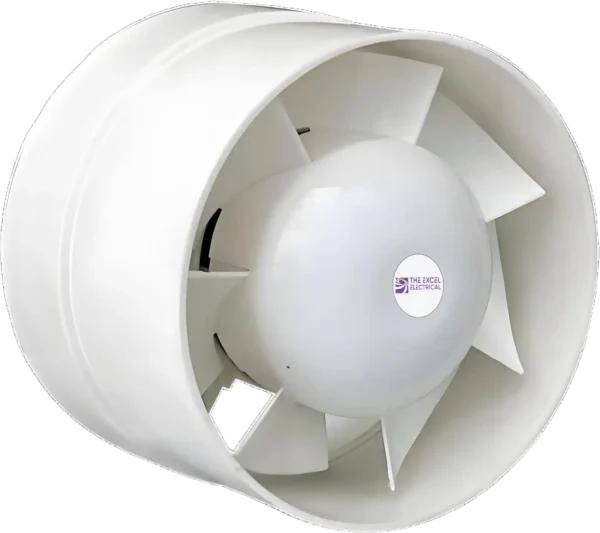

The APC Window Style Ventilation Fan is a compact and efficient exhaust fan designed for direct installation on windows or walls. With its small volume, large air delivery, and low noise performance, it is an ideal solution for residential and commercial ventilation.
This fan ensures effective air circulation, odor removal, and fresh air intake, making it suitable for homes, offices, kitchens, bathrooms, and small shops.
Application Industries & Uses:
- Residential homes and apartments
- Kitchens and bathrooms
- Small offices and shops
- Restaurants and cafes
- General-purpose ventilation
Features & Construction
- Impeller:
- Compact impeller design for efficient exhaust
- Provides smooth airflow with minimal vibration
- Balanced for silent performance
- Casing & Housing:
- Lightweight ABS/steel housing (model dependent)
- Designed for easy window or wall mounting
- Corrosion-resistant, durable finish
- Performance:
- Delivers large airflow in a compact form
- Low noise, stable, and efficient operation
- Ideal for small and medium spaces
- Motor:
- Pure copper motor for energy efficiency
- Direct-drive design, reliable and long-lasting
- Suitable for continuous household or office use
Types & Parameters
| Model | Hertz (Hz) | Power (W-P) | Traffic (m³/h) | Static Pressure (Pa) |
|---|---|---|---|---|
| 100mm – 4 inch | 50 | 14 | 100 | 150 |
| 150mm – 6 inch | 50 | 25 | 195 | 150 |
| 200mm – 8 inch | 50 | 40 | 310 | 180 |
| 100mm – 4 inch | 50 | 14 | 100 | 150 |
| 100mm – 4 inch | 50 | 14 | 100 | 150 |
| 150mm – 6 inch | 50 | 25 | 195 | 150 |
| 200mm – 8 inch | 50 | 40 | 310 | 180 |
| 100mm – 4 inch | 50 | 14 | 100 | 150 |
| 150mm – 6 inch | 50 | 25 | 195 | 150 |
| 200mm – 8 inch | 50 | 40 | 310 | 180 |
Technical Specifications
| Specification | Details |
|---|---|
| Material | ABS plastic / steel housing (depending on model) |
| Traffic / Application | Homes, offices, kitchens, bathrooms, shops |
| Power | Direct-driven motor |
| Air-flow | Large airflow for small/medium spaces |
| Noise Level | Low noise, suitable for household use |
| Size / Dimensions | Compact design for window/wall mounting |
| Motor | Pure copper, dynamically balanced |
| Warranty | 12 months (extendable) |
| Color | White / Industrial Grey (model dependent) |
| Voltage | 220V, 50Hz |
| RPM | Not specified in catalogue |
Key Benefits
- Compact window-mount design saves space
- Provides large airflow with low noise
- Easy to install in windows or walls
- Durable and corrosion-resistant build
- Energy-efficient copper motor for long service life
- Suitable for homes, offices, kitchens, and small shops
