Product Introduction

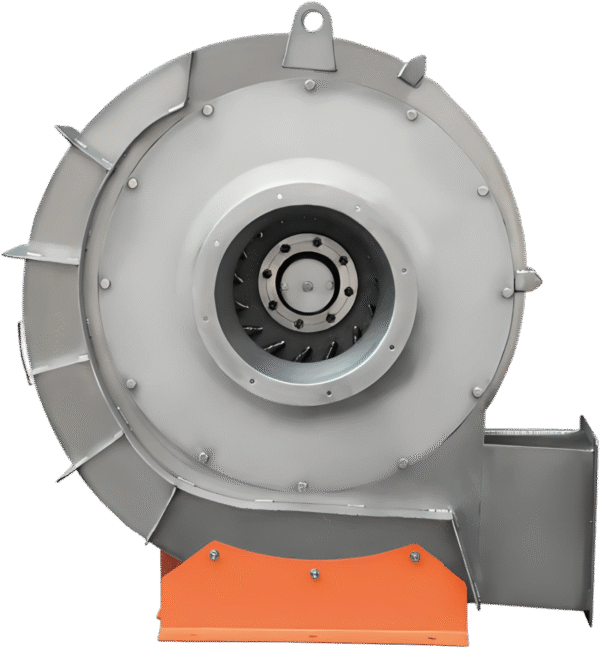

The 9-26A Stainless Steel High-Pressure Centrifugal Fan is a durable and high-efficiency industrial fan designed to handle oil fumes, humid air, and mildly corrosive gases. With its stainless steel impeller and casing, it ensures corrosion resistance, long service life, and strong suction power, making it suitable for industrial exhaust and kitchen ventilation systems.
It is widely applied in chemical industries, restaurants, hotels, food processing units, laboratories, and industrial ventilation setups that demand high-pressure performance with reliability.
Application Industries & Uses:
- Chemical processing plants
- Food processing facilities
- Restaurant and hotel kitchens
- Laboratories and pharmaceutical setups
- Industrial high-pressure exhaust systems
Features & Construction
- Impeller:
- Stainless steel impeller with straight blades
- Provides strong suction and high-pressure airflow
- Dynamically balanced for smooth, vibration-free operation
- Casing & Housing:
- Entirely made from stainless steel
- Corrosion-resistant and oil-proof construction
- Compact, durable design for heavy-duty environments
- Performance:
- Handles humid, oily, and mildly corrosive gases
- Provides large airflow under high static pressure
- Motor:
- Direct-driven pure copper motor
- Energy-efficient and long-lasting for continuous operation
Types & Parameters
| Type | Machine Numbers | Rotation | Outlet Position | Transmission Mode |
|---|---|---|---|---|
| Type A | No. 3.5, 4, 4.5, 5, 5.6, 6.3 | Right-handed (clockwise) / Left-handed (counterclockwise) | Adjustable 0°–225° (intervals: 22.5° or 45°) | Type A / Type D |
| Model | Speed (r/min) | Power (kW-P) | Traffic (m³/h) | Total Pressure (Pa) |
|---|---|---|---|---|
| 3.5A | 2900 | 2.2-2 | 1472-1812 | 2949-2820 |
| 3.5A | 2900 | 3-2 | 1927-2153 | 2761-3407 |
| 4A | 2900 | 5.5-2 | 2198-3215 | 3852-3407 |
| 4A | 2900 | 7.5-2 | 3130-3685 | 4910-4776 |
| 4.5A | 2900 | 11-2 | 3963-4792 | 4661-4256 |
| 5A | 2900 | 15-2 | 4293-6349 | 6035-5381 |
| 5A | 2900 | 18.5-2 | 4293-6762 | 6035-5180 |
| 5.6A | 2900 | 22-2 | 6032-7185 | 7610-7400 |
| 5.6A | 2900 | 30-2 | 7766-9500 | 7218-6527 |
| 6.3A | 2900 | 45-2 | 8588-11883 | 9698-8915 |
| 6.3A | 2900 | 55-2 | 12699-13525 | 8636-8310 |
Technical Specifications
| Specification | Details |
|---|---|
| Material | Stainless steel (impeller & casing) |
| Traffic / Application | Chemical plants, kitchens, food processing, labs, industrial exhaust |
| Power | Direct-driven motor |
| Air-flow | Large airflow with high pressure efficiency |
| Noise Level | Low noise, vibration-free |
| Size / Dimensions | Machine No. 3.5 – 6.3 |
| Motor | Pure copper, dynamically balanced |
| Warranty | 12 months (extendable) |
| Color | Stainless Steel Finish |
| Voltage | 220V / 380V, 50Hz |
| RPM | 1450 – 2900 RPM (depending on size) |
Key Benefits
- High pressure stainless steel centrifugal fan
- Corrosion-resistant design for chemical and kitchen environments
- Strong suction with large air volume output
- Low noise and vibration-free performance
- Durable and long service life with minimal maintenance
- Suitable for oil fume, humid, and mildly corrosive air applications
